Wave & Pulse Operation Analyzer

For Ground Navaids

  • TACAN, DVOR, DME Interrogtor all-In-one Hw & Sw, One Pricing

    Operation Analyzer: Index for trend analysis in performance and operation environment, Data Base Build-up

Presented in Navaids Seminar administrated by the Ministry of Land and Transporation,

https://www.youtube.com/watch?v=TAEva6_N6tQ&t=16343s

  • Official Acknowlegement for Performance and Support from Republic of Korea Air Force and Navy since 2019


WPOA150 Banner 3.png


What is Wave & Pulse Operation Analyzer (WPOA)?

Signals-In-Space are the actual signals received by the aircraft from NAVAIDS.

These signals are greatly affected by various dynamic factors within the operation environment. System alignment, environmental conditions and geographic location

In order to overcome this challenge, the wave and pulse analyzer identifies these factors and signals altogether and analyses the performance of the NAVAID.

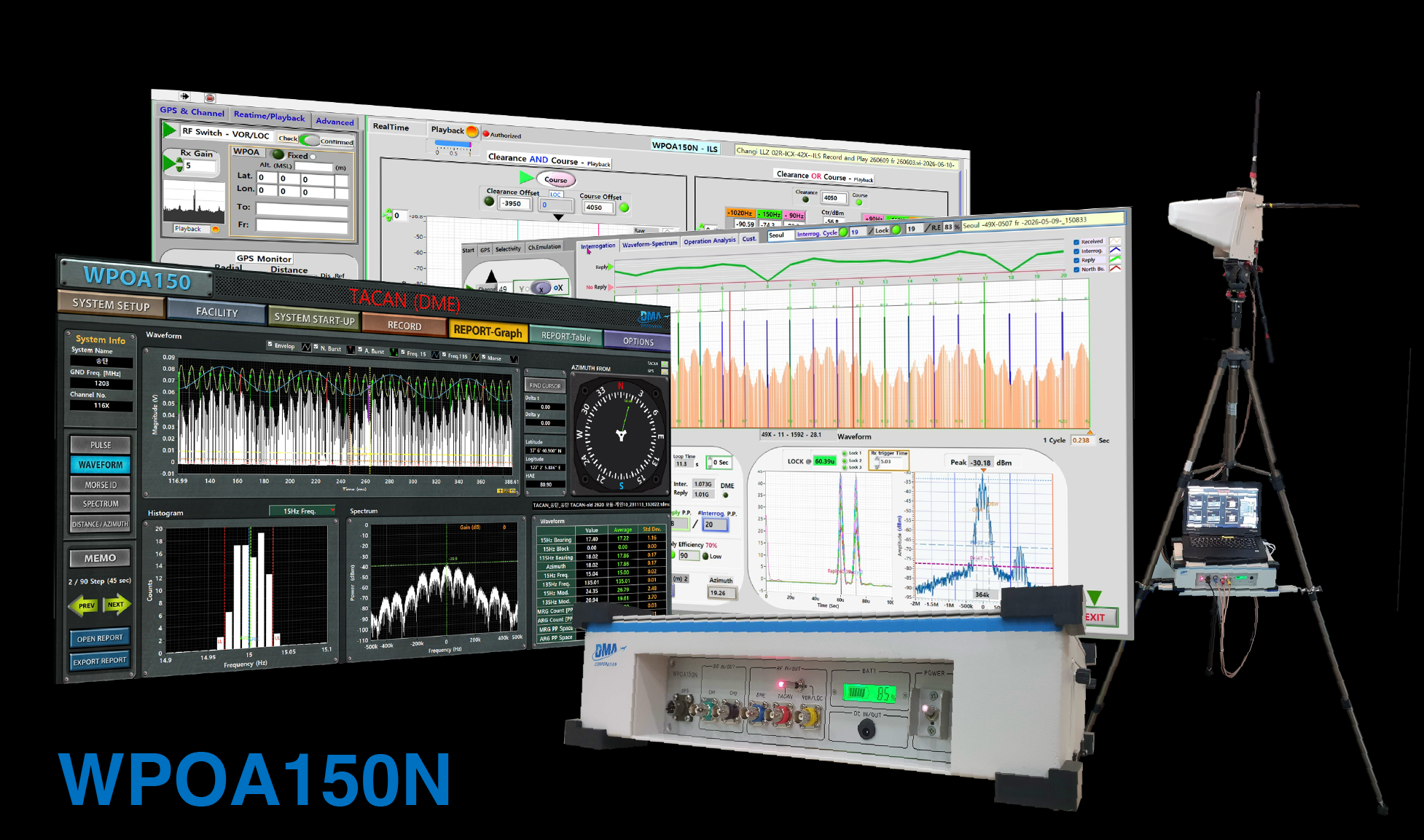

Based on this fundamental idea we developed the WPOA Wave and Pulse Operational Analyzer

The WPOA is an All-In-One system that can detect, process and measure the signal in space in the field. From TACAN. DME and VOR split it into it's component parts, then analyze these signals.

Rather than just acquiring the data in mere numbers and charts, the WPOA can process the data, visualize and displays of interactive graphs

Making it easy to use by personnel with basic navaid knowledge

A few touches of a mouse and you get what you need to see and no need to read a lengthy manual

Battery powered, Portable, 15 Minute Set-up and Go, Outdoor and Indoor

On-Line Tech support provided.

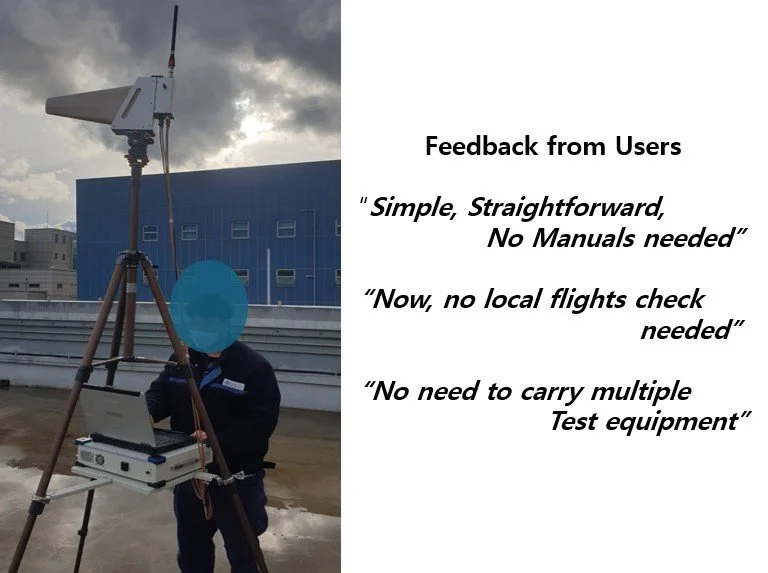

TACAN deployed 2.jpg
TACAN Ex 1.jpg

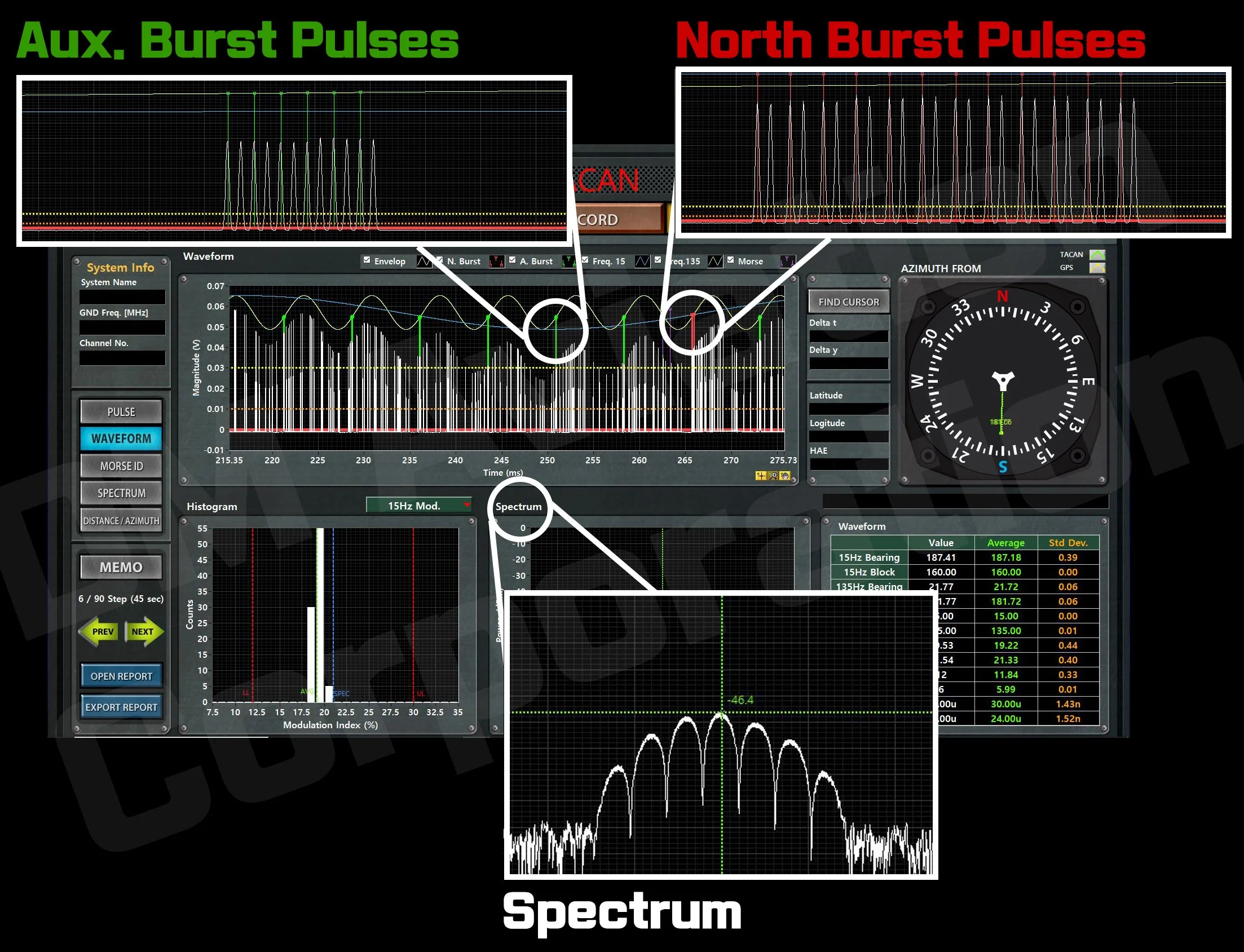

Sample screenshots available below

feature

Displays pulses, waveform and spectrum

Displays TACAN & VOR parameters as per MIL-STD-291C & ICAO standards, respectively

Displays DME distance and reply pulses for analysis with Interrogation

Displays simultaneous indication of calculated and measured azimuth for alignment

One screen for VORTAC operational analysis

Azimuth and distance calculation based on GPS data for position reference

Histogram with statistical analysis, with tolerance limits as per relevant standards

Composite envelope graphs of waveform analysis

Built-In Oscilloscope (2-channel voltage meter for spectrum analysis)

Combined testing/analysis of RF & baseband signal


Removable and rechargeable 3-hour battery for air and field trip

15-minute setup at site

Customizable User-friendly menu and display

Touch-Screen GUI for menu selection, and for zooming in & out of waveforms and pulses

Qualitative & quantitative analysis of operation environment

Library build-up for database of operational analysis

Application

Azimuth alignment & calibration for TACAN and VOR

Analysis of signal-in-space with operational environments

Quick and easy check of operational status in 15 minutes at site

Easy maintenance, data recording for long term operational analysis

Training

Pre-check for flight inspection

Library build-up for database, Trend Analysis

Configuration

WPOA enclosure including internal battery

Antenna station with GPS, TACAN, DME & VOR antenna

Tripod with carrying case

Cables for TACAN, VOR, DME & GPS

Ruggedized GUI with screen brightness > 800 nit for field operation

Chargers and user manual

Optional

Spare batteries

If you have any inquiries, please contact us HERE.
